HEAT EXCHANGER SOLUTIONS FOR HEAT PUMPS

A SUSTAINABLE AND INDEPENDENT HEATING METHOD

Climate change drives us to look for alternative heating methods. Heat pumps are one of these developing methods and can be used for commercial applications like heating and cooling buildings, houses, supermarkets, swimming pools a well as water.

There is also a shift to industrial applications and large units that are used for the generation of process heat for several industrial processes like in the chemical and food & beverage industry.

Last but not least high capacity heat pumps can be used to boost district heating grids.


CO2 FOOTPRINT
REDUCTION

DESIGNED AND
OPTIMIZED

SILENT OPERATION
FOR URBAN AREAS

NATURAL
REFRIGERANT

DISTANCE
MONITORING

The efficiency of a heat pump is defined by it's coefficient of performance (COP). The COP is a ratio of useful heating (or cooling)
a heat pump will produce, given a certain energy input. The higher the COP value, the higher the efficiency.

We can support you to manage heat and cold efficiently in industrial and residential areas.

With innovative designed-to order Heat Pump Evaporators (also called False Load Cooler or Exterior Evaporator), customized coils as well as efficient plate heat exchangers, the CO2 footprint will be reduced significantly.

CONDENSER

EVAPORATOR

INTELLIGENT SOLUTIONS

LOOKING FOR THE ALL-ROUND
CARE FREE PACKAGE OR NEED MORE ADVICE ?

Consultation by
our experts

Global Sales & Service Network

Improvement of  your system efficiency

Highest quality standards

Innovative
solutions

CONTACT OUR EXPERTSDon't look any further. CONTACT US NOW.

HEAT PUMP | WORKING PRINCIPLE

A heat pump consists of an evaporator, compressor, condenser and an expansion valve.

The system allows for the transmission of heat from one location (Heat Source) at a lower temperature
to another location (Heat Sink) at a higher temperature.

  • The technology and efficiency of the heat exchangers significantly determines the COP value
  • The COP "Coefficient Of Performance" is the ratio of useful heating or cooling provided to work (energy) required
  • The higher the COP value, the higher the efficiency
  • Heat Source is an important factor to determine the heat exchanger for the evaporator
  • Technology of the evaporator and condenser play a decisive role for the efficient operation of the system
  • Size of heat exchangers and heat pump affect energy coverage and part-load operation
  • Condenser technology affects heat transfer and thus the efficiency of the system

District Heating

Family Homes

Industrial Facilities & Commercial Buildings

Swimming Pools

Process Heat (Hot Water)
for pasteurization and sterilization


Potable Water

Process Heat
(Hot Water or Steam)


LET'S TALK ABOUT YOUR APPLICATION


BRAZED PLATE HEAT EXCHANGER

  • For commercial applications
  • Highest flexibility
  • Compact design
  • Optimal corrugation design
  • Wide range of applications
  • Solid construction
  • Precision-made heat exchanger


GASKETED PLATE HEAT EXCHANGER (INCL. LASER WELDED CASSETTE)

  • For industrial and waste heat applicactions
  • Suitable for demanding heat transfer tasks
  • Close temperature approach between the two fluids (1°C)
  • Large temperature difference between inlet and outlet
  • High pressure resistance
  • For high NTU values
  • High Pressure Laser Welded Cassette (HPL) for ambitious applications


DESIGN TO ORDER EVAPORATORS

  • Single discharge false load coolers in both standard and non-standard executions
  • Recommended choice from small to mid-size capacity ranges. (10-250 kw)
  • In case that no standard solutions can be found
  • Non-standard single blowing units can be designed
  • Including drip tray to accumulate defrost wate
  • Condenser/Cooler combination to realize with 1 coil
  • Excellent possibilities to size or customize


FLATBED OR V-SHAPE DESIGN

  • Flatbed is a classical design for small to midsize capacities
  • V-Shape design to be used for mid to large capacities
  • Design to be choosen considering footprint and capacity density
  • Fin Pitch: 2,1mm – 4mm
  • Flat, Waved and Turbulator Profiles available
  • Efficient defrosting solutions available
  • Working Point: Reversible


OEM SOLUTIONS

  • Coils incl. fan-sets built to customer specifications
  • Tailored for any specification needed for your heat pump application
  • Solutions that can be offered as a special OEM design
  • Efficiency, Quality and Innovation


COILS

  • Single Coils as Evaporator/Condenser or Air-Heater/AIr-Cooler
  • Including drip pan to accumulate defrost water
  • Fin Pitch: 1,6mm – 7,5mm
  • Flat, Waved and uniquely waved fin design
  • Reversing the cycle


DESIGN TO ORDER COILS

  • Coils both for warm- and cold applications
  • Bespoke solution to meet your specific requirements
  • Adaptable to customer’s specifications as built-in units
CONTACT OUR APPLICATION AND PRODUCT EXPERTS

HEAT SOURCE
EXAMPLES

HEAT SINK
EXAMPLES

Waste Heat

Ground

Water

Ambient Air

APPLICATION EXAMPLES

INDUSTRIAL HEAT PUMPS

EXPLORE OUR HEAT EXCHANGER SOLUTIONS
  • EVAPORATOR
  • CONDENSER

COMMERCIAL HEAT PUMPS

APPLICATION EXAMPLES

Ground

Tap Water

Family Homes

ADVANTAGES:

  • Small to mid size capacities
  • Low refrigerant charge system
  • Reversible execution possible
  • Suitable system for single and multi-family houses or swimming pools
  • Pleasant temperatures in the living area all year round

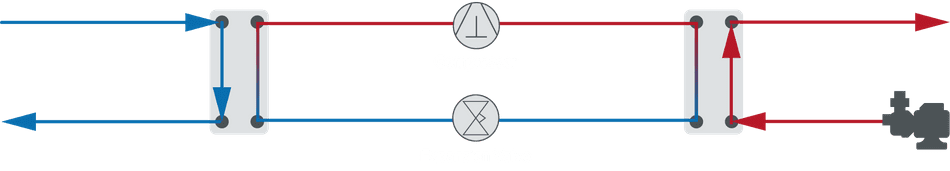

  • Geothermal energy as heat source (sole to water heat pump)
  • Compact and efficient Brazed Plate Heat Exchanger as evaporator, condenser and economizer

EVAPORATOR

CONDENSER

Ambient Air

Tap Water

Family Homes

ADVANTAGES:

  • Small to mid size capacities
  • Low refrigerant charge system
  • Reversible execution possible
  • Suitable system for single and multi-family houses or hot water
  • Pleasant temperatures in the living area all year round

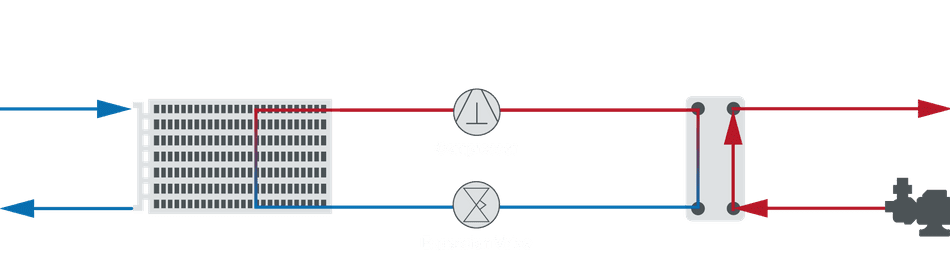

  • Ambient Air used as heat source
  • OEM coils as bespoke evaporator solutions
  • Brazed Plate Heat exchanger as condenser

ADVANTAGES:

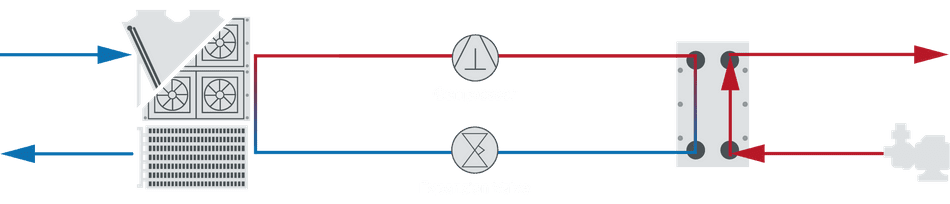

  • Bespoke customized aircooler or coil solutions as  evaporator
  • Ideally suited for ambient air
  • High efficiency
  • For district areas, industrial applications and factory halls in chemicals or dairy
  • Reversible execution possible
  • Low refrigerant charge
  • Gasketed plate heat exchanger (incl. Laser Welded Cassette) as condenser

Ambient Air

District
Heating

Process
Heat

Industrial
Facilities

EVAPORATOR

CONDENSER

Water

District
Heating

Process
Heat

Industrial
Facilities

EVAPORATOR

CONDENSER

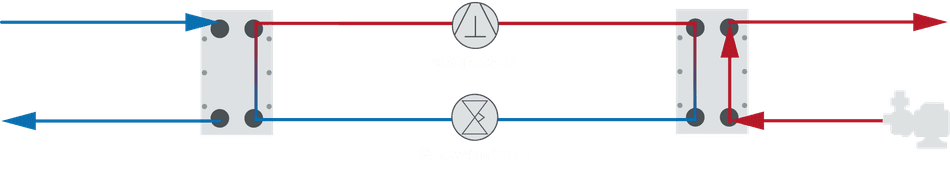

Waste Heat

ADVANTAGES:

  • High efficiency & low refrigerant charge
  • Easy installation and maintenance
  • Reversible execution possible
  • For district areas and higher capacities
  • Ideally suited for longer distances

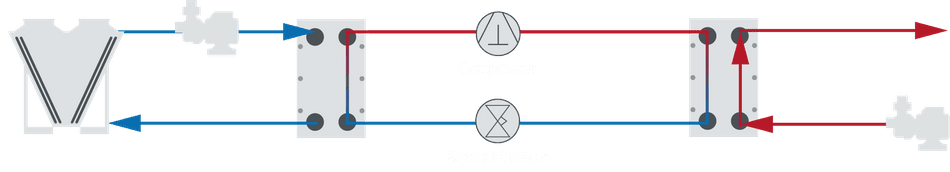

  • Dry Cooler used to bring the ambient air into the water circuit
  • Gasketed plate heat exchanger (incl. Laser Welded Cassette) as evaporator and condenser for the refrigerant / water circuit

Ambient Air

District
Heating

Process
Heat

Industrial
Facilities

EVAPORATOR

CONDENSER

Water

DRY COOLER

ADVANTAGES:

  • Reuse of waste heat from e.g. Data Center
  • River or ground water possible
  • Pleasant temperatures and hot water for appartement houses, office buildings, hotels or factory halls
  • Reversible execution possible
  • Gasketed plate heat exchanger (incl. Laser Welded Cassette) as evaporator and condenser
